Material Specifications

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid
PM-1-C (US); CPM-1-C (Canada)
WSS-M6C62-A or WSS-M6C65-A1

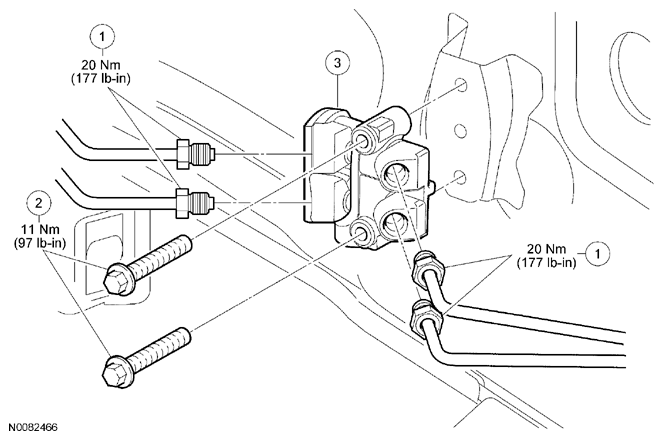

Fig 1: Exploded View Of Brake Pressure Control Valve Components With Torque Specifications
G07784223Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Brake pressure control valve brake tube fittings (part of 9J279)
2 W711239 Brake pressure control valve bolts (2 required)
3 43900 Brake pressure control valve
