Removal and Installation
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

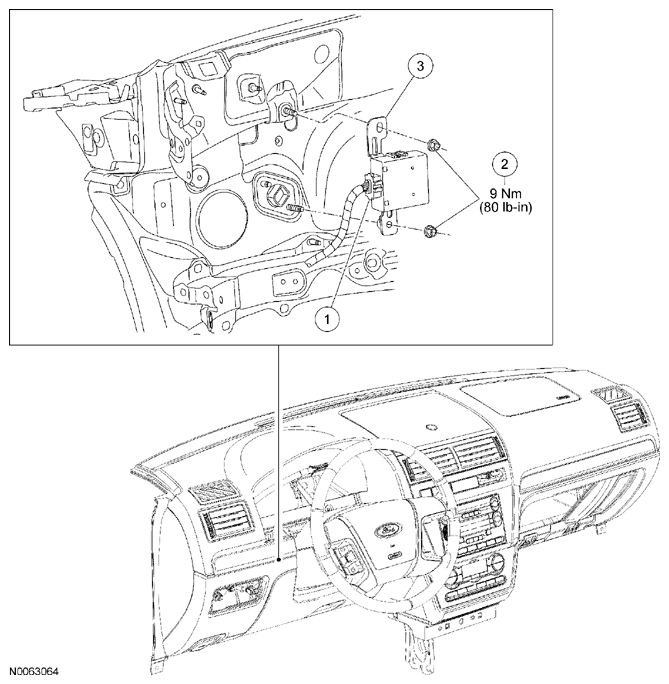

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electrical connector (part of 14A005) |
| 2 | W706840 | 4X4 control module nuts and washers (2 required) |
| 3 | 7E453 | 4X4 control module and bracket assembly |
- From below the LH side instrument panel, disconnect the 4X4 control module harness connector.
- Remove the two 4X4 control module nuts.
- To install, tighten to 9 Nm (80 lb-in).
- Remove the 4X4 control module and bracket.
- To install, reverse the removal procedure.
