Wheel and Tire: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| Digital Tire Pressure Gauge 204-354 |

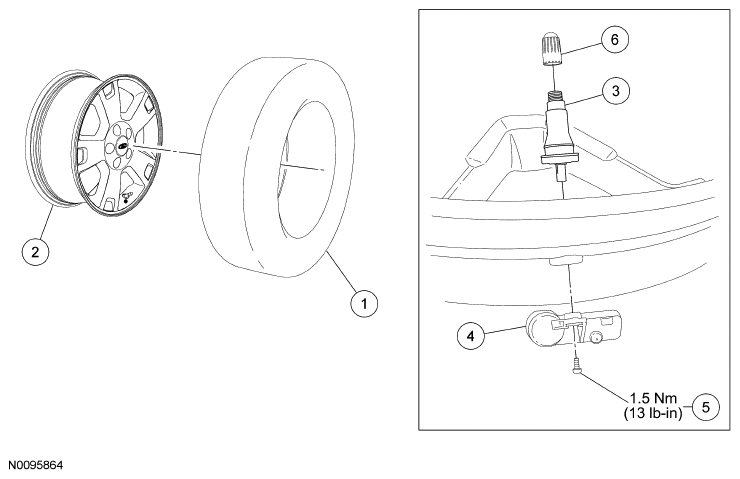

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 1508 | Tire |
| 2 | 1007 | Wheel |
| 3 | 1700 | Valve stem and screw (also part of 1A189) |
| 4 | 1A189 | Tire Pressure Monitoring System (TPMS) sensor (a new sensor assembly includes W714266 screw and 1700 valve stem and cap) |
| 5 | - | Valve stem-to-TPMS sensor screw (part of 1700) |
| 6 | 1A163 | Valve stem cap (also part of 1A189) |
