In-Vehicle Repair: Flywheel: Installation
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

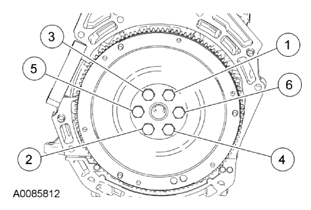

- Install the flywheel and tighten the bolts in the sequence shown in illustration in the following 3 stages:
- Stage 1: Tighten to 50 Nm (37 lb-ft).
- Stage 2: Tighten to 80 Nm (59 lb-ft).
- Stage 3: Tighten to 112 Nm (83 lb-ft).
- Install the engine. For additional information, refer to ENGINE in this service information.
NOTE:
Special bolts are used for installation. Do not use standard bolts.
