Engine Cooling Fan Motor Connector - C1048

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

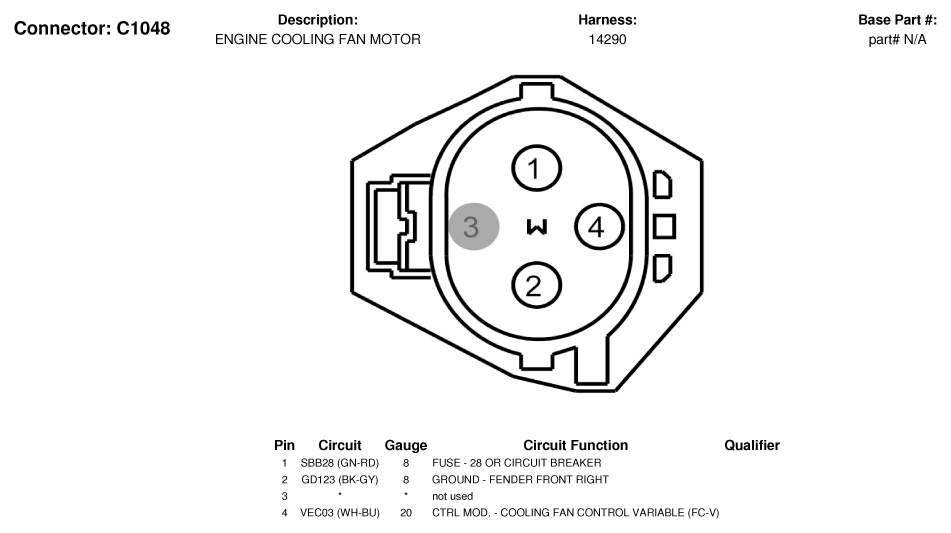

Fig 1: Engine Cooling Fan Motor Connector End View (C1048)
G07336185Courtesy of FORD MOTOR CO.
