Safety Belt Shoulder Height Adjuster: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

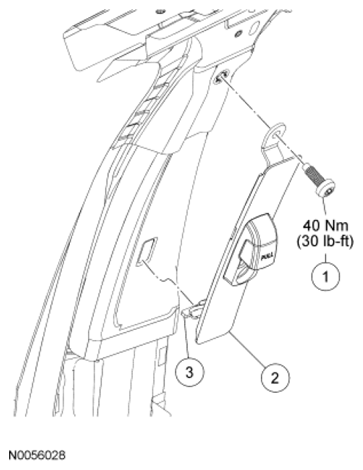

NOTE:
RH shown in illustration, LH similar.
Courtesy of FORD MOTOR CO. DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
- |
Safety belt shoulder height adjuster bolt (part of 602B82) |
| 2 |
602B82 |
Safety belt shoulder height adjuster |
| 3 |
- |
Safety belt shoulder height adjuster T-tab (part of 602B82) |
