Safety Belt Retractor - Rear: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

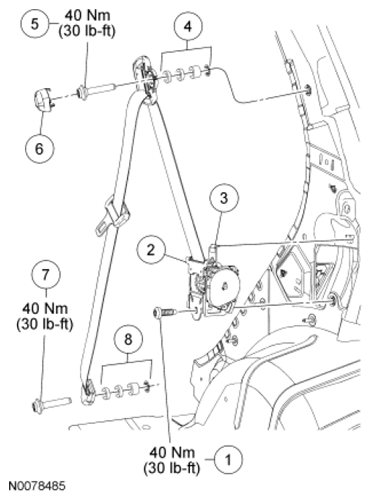

DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Rear safety belt retractor bolt (part of 611B68 RH/611B69 LH) |
| 2 | 611B68 RH/611B69 LH | Rear safety belt retractor |
| 3 | - | Rear safety belt retractor locator T-tab (part of 611B68 RH/611B69 LH) |
| 4 | - | Spacers and retainer (part of 611B68 RH/611B69 LH) |
| 5 | - | Rear safety belt retractor D-ring bolt (part of 611B68 RH/611B69 LH) |
| 6 | 60262 | Rear safety belt retractor D-ring cover |
| 7 | - | Rear safety belt retractor anchor bolt (part of 611B68 RH/611B69 LH) |
| 8 | - | Spacers and retainer (part of 611B68 RH/611B69 LH) |
