Safety Belt Buckle - Rear, 40 Percent Seat

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

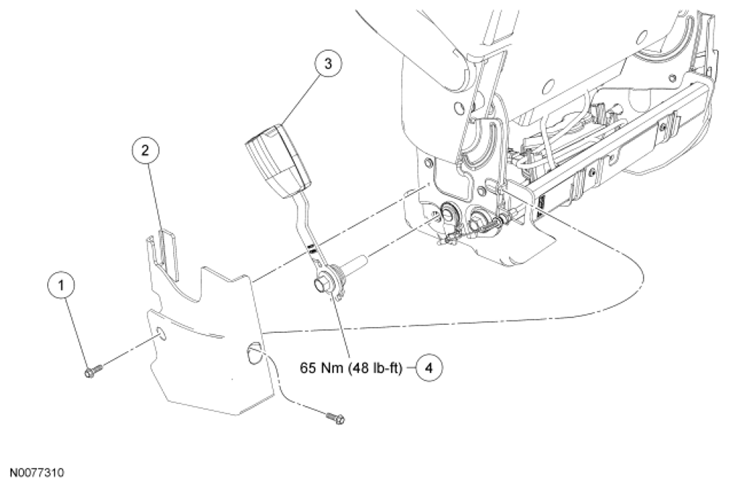

Fig 1: Rear Seat Safety Belt Buckle -- 40 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

DESCRIPTION CHART

Item	Part Number	Description
1	W712241	Inboard lower side shield screw (2 required)
2	61349	Inboard lower side shield
3	60044	Safety belt buckle
4	-	Safety belt buckle bolt (part of 60044)
