Safety Belt Buckle - Rear Center, 60 Percent Seat

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

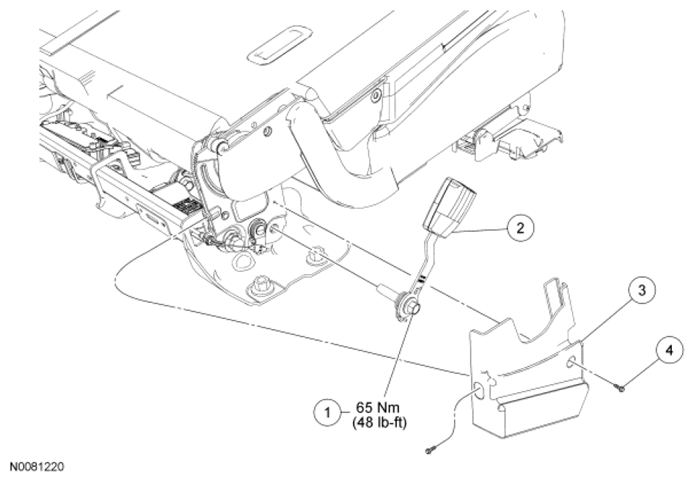

Fig 1: Rear Center Seat Safety Belt Buckle -- 60 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

DESCRIPTION CHART

Item	Part Number	Description
1	-	Safety belt buckle bolt (part of 60044)
2	60044	Safety belt buckle
3	61349	Inboard lower side shield
4	W712241	Inboard lower side shield screw (2 required)
