LH Power Seat

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

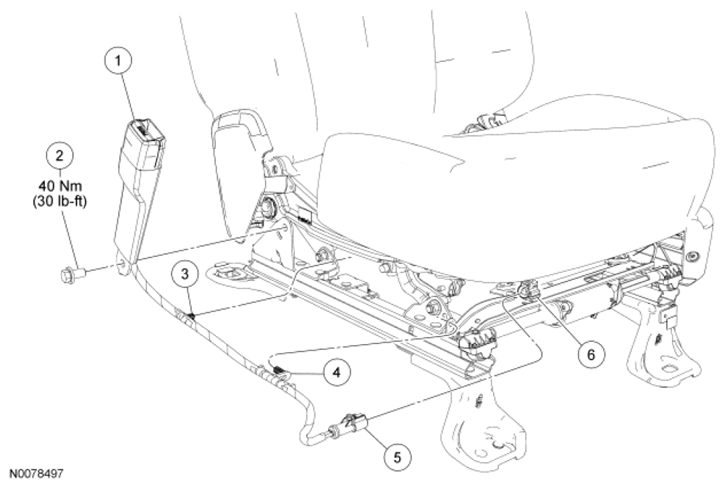

Fig 1: Front Safety Belt Buckle -- LH Power Seat With Torque Specifications
G06506252Courtesy of FORD MOTOR CO.
DESCRIPTION CHART

Item Part Number Description
1 61203 Safety belt buckle
2 - Safety belt buckle bolt (part of 61203)
3 - Pin-type retainer (part of 61203)
4 - Pin-type retainer (part of 61203)
5 - Safety belt buckle switch electrical connector (part of 61203)
6 - Body harness connector (part of 14A699)
