Roof Opening Panel Motor Block and Drive Tube Assembly - Sliding Front Panel: Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Insert the drive cables into the sliding glass mechanisms and insert the mechanisms completely into the guide tracks.

Fig 1: Locating Drive Cables
Courtesy of FORD MOTOR CO.
Install the center rear shade track-to-housing screws but do not tighten at this time.

Fig 2: Locating Center Rear Shade Track-To-Housing Screws
Courtesy of FORD MOTOR CO.
Install the LH and RH 12 front guide track-to-housing screws.
- Align the track to the marks previously made. Tighten to 5 Nm (44 lb-in).

  Fig 3: Locating Front Guide Track-To-Housing Screws
  Courtesy of FORD MOTOR CO.
Install the front drive tube bracket-to-guide track screws.
- Tighten to 5 Nm (44 lb-in).

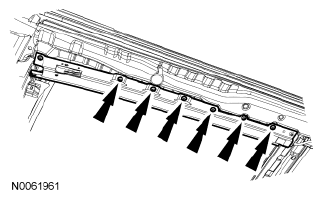

  Fig 4: Locating Front Drive Tube Bracket-To-Guide Track Screws
  Courtesy of FORD MOTOR CO.
Install the remaining 4 rear shade track-to-housing screws.
- Align the track to the marks previously made. Tighten all shade track-to-housing screws to 5 Nm (44 lb-in).

  Fig 5: Locating Rear Shade Track-To-Housing Screws
  Courtesy of FORD MOTOR CO.
Install the LH and RH rear drive tube bracket-to-housing screws.
- Tighten to 5 Nm (44 lb-in).

  Fig 6: Locating Rear Drive Tube Bracket-To-Housing Screws
  Courtesy of FORD MOTOR CO.

NOTE: Be careful not to overtighten cable wraps during assembly to prevent crimping the cable sheath.

NOTE: The cable wraps must be reinstalled at the exact same locations.

NOTE: Motors shown in illustration for reference only.

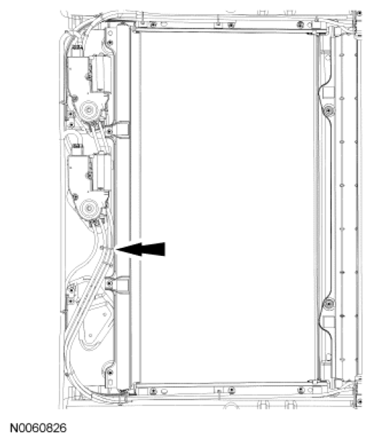

Fig 7: Locating Cable Wraps

Courtesy of FORD MOTOR CO.

Install new cable wraps to the shade motor block and drive tube assembly.

NOTE: Do not install the headliner at this time.

Install the front and rear shade assemblies but do not carry out the roof opening panel motor initialization at this time. For additional information, refer to ROOF OPENING PANEL MOTOR - SHADE .
Manually move the sliding front glass mechanisms forward until they are flush against the track hardstops.

NOTE: Do not install the headliner at this time.

Install the roof opening panel sliding glass motor but do not carry out the initialization at this time. For additional information, refer to ROOF OPENING PANEL MOTOR - SLIDING FRONT PANEL .
Carefully move the front and rear shades rearward to the fully OPEN position by pushing at the edges closest to the tracks.
Install the roof opening panel shade motor but do not carry out the initialization at this time. For additional information, refer to ROOF OPENING PANEL MOTOR - SHADE .
With the roof opening sliding glass panel still removed, initialize the roof opening panel motor(s). For additional information, refer to ROOF OPENING PANEL MOTOR INITIALIZATION .

NOTE: Press the roof opening panel control switch to move the mechanisms rearward to allow installation of the sliding glass panel.

NOTE: It will be necessary to carry out the initialization procedure again after the glass panel is installed.

Install the roof opening panel sliding glass. For additional information, refer to ROOF OPENING PANEL GLASS - FRONT SLIDING .
