Removal and Installation
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The gearing on the shade motor (silver label or white label) is different than the sliding glass motor (black label or blue label). If the shade motor or the sliding glass motor is installed in the incorrect location, the sunshade and/or glass panel travel distance will be affected and damage to some of the components may result.
NOTE:
The roof opening panel sliding glass motor contains ceramic magnets that may fail at any time if cracked. Any roof opening panel sliding glass motor that has been dropped onto a hard surface during removal or installation should be replaced with a new motor.
NOTE:
Both the power sliding glass motor and the power shade motor must be the same build level. If installing a new motor, replace a black label (sliding glass motor assembly) with a black label (sliding glass motor). If a black label (sliding glass motor assembly) is not available, both motors need to be replaced with a white label (shade motor) and a blue label (sliding glass motor assembly) with a new wiring jumper harness. If a blue label (sliding glass motor) is present, then the motor can be replaced separately.
- Remove the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

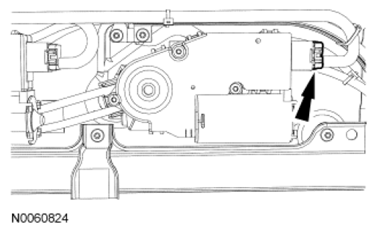

- Disconnect the electrical connector.

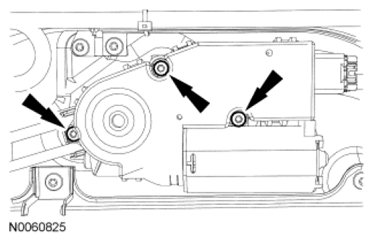

- Remove the 3 motor screws and the motor assembly.
- To install, tighten to 5 Nm (44 lb-in).
- To install, reverse the removal procedure.
- Initialize the roof opening panel motor(s). For additional information, refer to ROOF OPENING PANEL MOTOR INITIALIZATION .
NOTE:
Early build motors shown in illustration, late build motors similar.
NOTE:
During installation, it may be necessary to rotate the motor clockwise or counterclockwise for the gear teeth to set into the drive cable correctly.
