Roof Opening Panel Motor(s) and Electrical
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

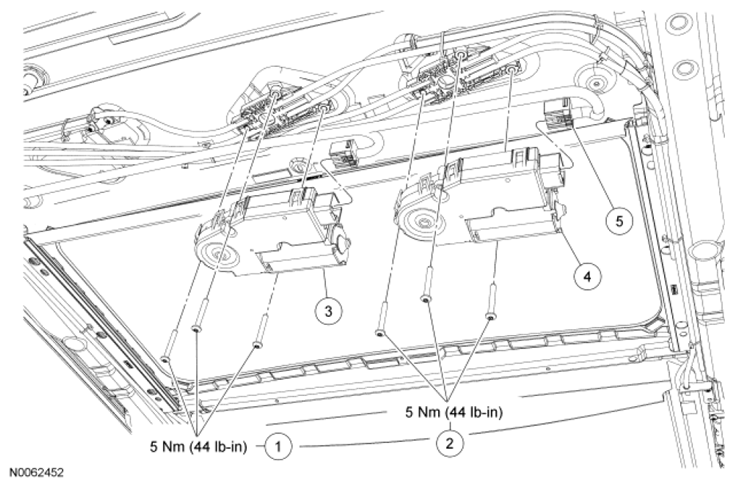

Early build motors shown in illustration, late build motors similar.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W790077 | Shade motor retaining screws (3 required) |
| 2 | W790077 | Sliding glass motor retaining screws (3 required) |
| 3 | 15790 | Shade motor assembly (silver label) |
| 4 | 15790 | Sliding glass motor assembly (black label) |
| 5 | 15A657 | Roof opening panel motor harness assembly |
