Idler Track and Mechanism
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

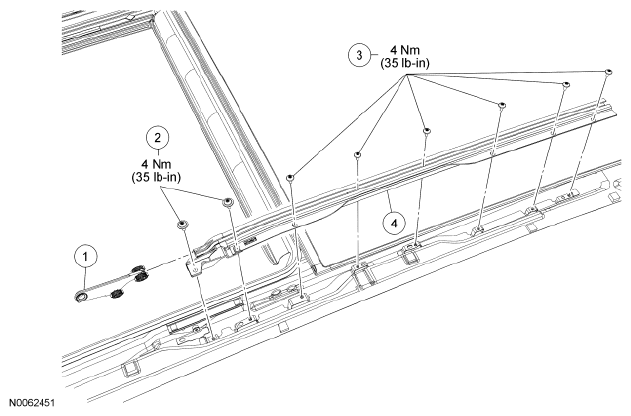

LH shown in illustration, RH similar.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 78502M78 RH/78502M79 LH | Idler track mechanism |
| 2 | W790074 | Front idler track-to-housing fasteners (2 required per side) |
| 2 | W790084 | Service replacement fasteners for W790074 (use only if threaded hole becomes stripped during assembly) |
| 3 | W790073 | Rear idler track-to-housing fasteners (6 required per side) |
| 3 | W790082 | Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly) |
| 4 | 51070 RH/51071 LH | Idler track and mechanism |
