Front and Rear Sunshade Assembly
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

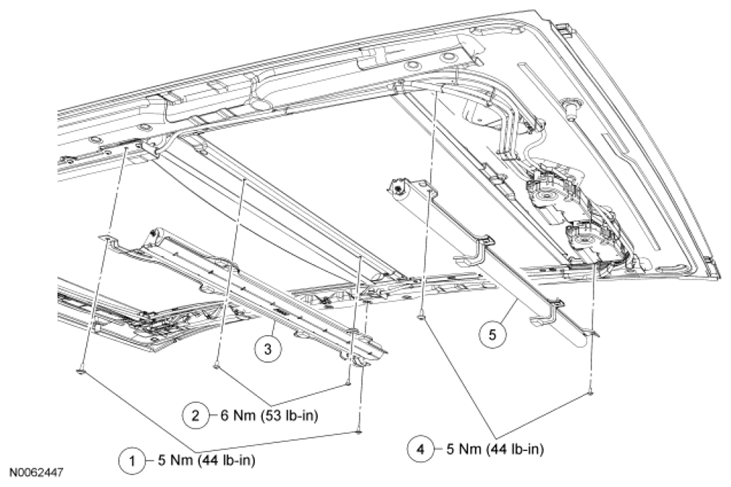

Early build motors shown in illustration, late build motors similar.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W790074 | Front sunshade carrier outer screws (2 required) |
| 1 | W790084 | Service replacement fasteners for W790074 (use only if threaded hole becomes stripped during assembly) |
| 2 | W790073 | Front sunshade carrier center screws (2 required) |
| 2 | W790082 | Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly) |
| 3 | 519A02 | Front sunshade assembly |
| 4 | W790073 | Rear sunshade carrier-to-housing screws (2 required) |
| 4 | W790082 | Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly) |
| 5 | 78519A02 | Rear sunshade assembly |
