Front Guide Track Mechanism
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

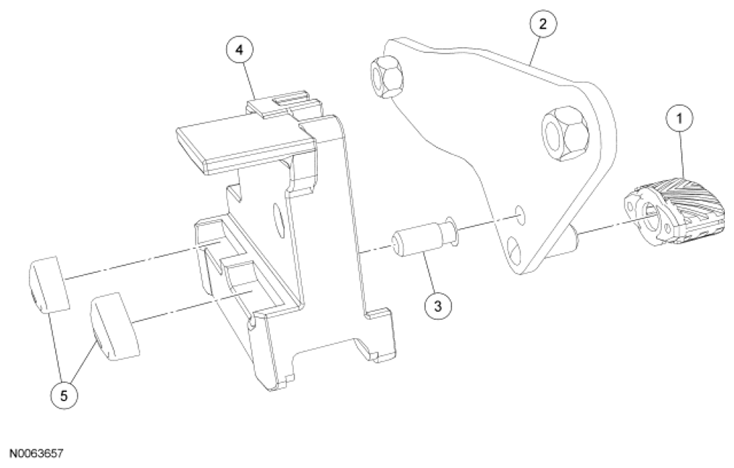

LH shown in illustration, RH similar.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Outer guide foot (part of the guide track mechanism assembly) |
| 2 | - | Sliding glass bracket (part of the guide track mechanism assembly) |
| 3 | - | Sliding glass bracket pin (part of the guide track mechanism assembly) |
| 4 | - | Guide mechanism (part of the guide track mechanism assembly) |
| 5 | - | Inner guide feet (2 required per side) (part of the guide track mechanism assembly) |
- For additional information, refer to the appropriate individual procedures.
