Exterior Trim, Seals, Fixed Glass and End Caps
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

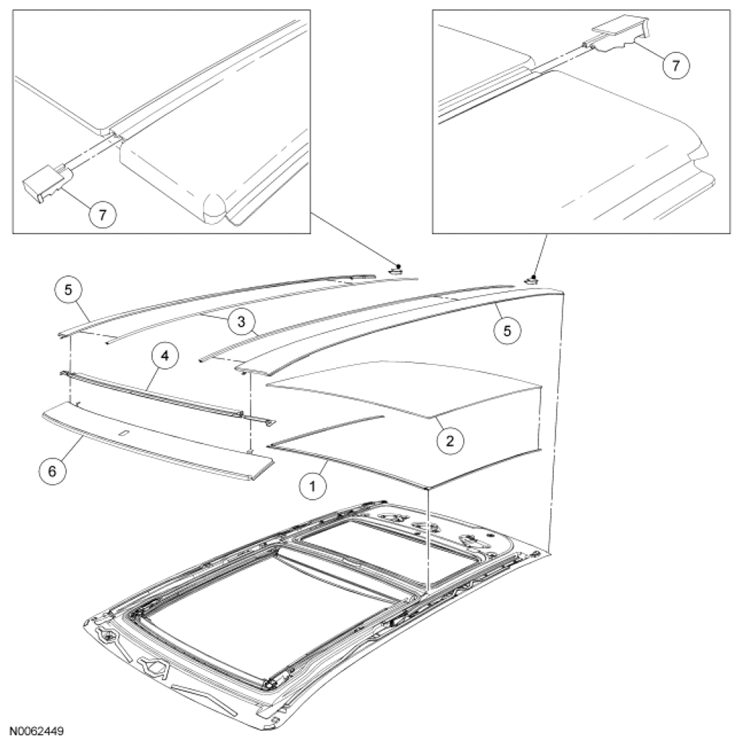

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
51707 |
Fixed glass front seal |
| 2 |
18500A18 |
Fixed glass assembly |
| 3 |
503A22 |
Side trim seals (2 required) |
| 4 |
503A23 |
Front trim seal |
| 5 |
51746 |
RH/51945 LH Side trim panels |
| 6 |
50046 |
Front trim panel |
| 7 |
32228 |
End caps (2 required) |
