Roof Opening Panel Manual Operation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

NOTE: Roof opening sliding glass panel motor shown in illustration, shade motor similar.

NOTE: Early build motors shown in illustration, late build motors similar.

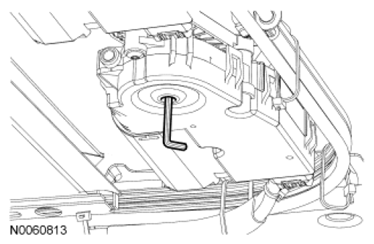

Fig 1: Inserting An Allen Wrench Into Center Of Manual Drive Hole Of Roof Opening Panel Motor

Courtesy of FORD MOTOR CO.

Insert an Allen wrench into the center of the manual drive hole of the roof opening panel motor(s). Rotate the Allen wrench counterclockwise to close the roof opening panel glass/shades or clockwise to open the roof opening panel glass/shades.
