Rocker Panel Moulding

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown in illustration, LH similar.

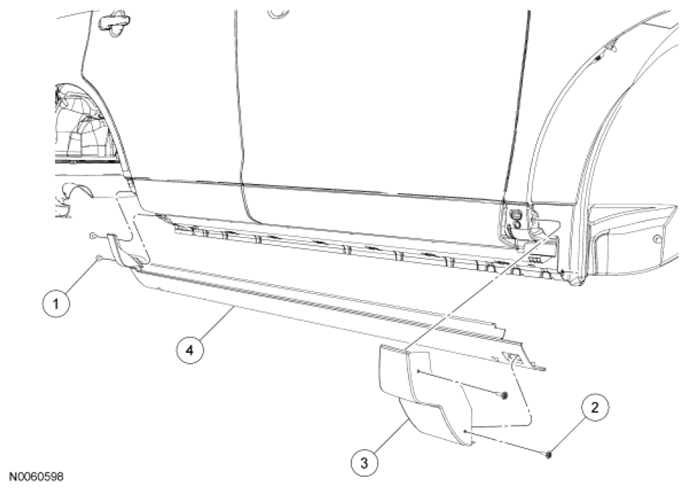

Fig 1: Identifying Rocker Panel Moulding Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W706805-S	Rocker panel moulding rear screw (2 required)
2	W706805-S	Rocker panel moulding cap front screw (2 required)
3	7810154 RH/7810155 LH	Rocker panel moulding cap
4	78101A04 RH/78101A05 LH	Rocker panel moulding

Remove the rocker panel moulding front cap.
- Remove the 2 screws.
- Remove the front cap.

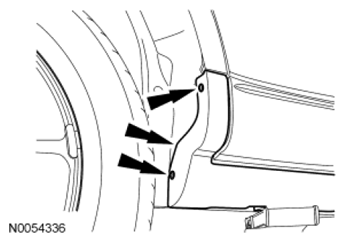

  Fig 2: Locating Rocker Panel Moulding Front Cap And Screws
  Courtesy of FORD MOTOR CO.

NOTE: RH shown in illustration, LH similar.

Fig 3: Locating Rocker Panel Moulding Inside And Screws

Courtesy of FORD MOTOR CO.

Remove the 2 screws from the rocker panel moulding inside the rear wheelhouse.
Open the front and rear doors.

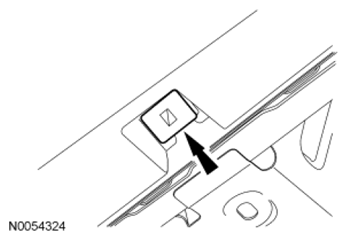

Release the retainers on the bottom of the rocker panel moulding.

Fig 4: Locating Retainers On Bottom Of Rocker Panel Moulding
Courtesy of FORD MOTOR CO.
Pull outward to release the rocker panel moulding from the body, starting from the front of the vehicle moving rearward.
To install, reverse the removal procedure.
