Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the LH quarter trim panel access cover.

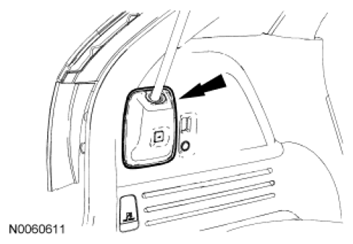

Fig 1: Locating LH Quarter Trim Panel Access Cover
Courtesy of FORD MOTOR CO.
Unclip the power liftgate rod from the motor assembly.
- Squeeze the clip as shown to release and position the rod assembly upward.

  Fig 2: Squeezing Clip
  Courtesy of FORD MOTOR CO.
Remove the cover and the power liftgate rod-to-liftgate retaining nut.
- To install, apply threadlock to the threads of the fastener and tighten to 11 Nm (97 lb-in).

  Fig 3: Locating Power Liftgate Rod-To-Liftgate Retaining Nut
  Courtesy of FORD MOTOR CO.
Remove the 3 power liftgate rod mounting bracket nuts.
- To install, tighten to 30 Nm (22 lb-ft).
To install, reverse the removal procedure.
- Initialize the power liftgate. For additional information, refer to POWER LIFTGATE INITIALIZATION .
