Power Liftgate Motor: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

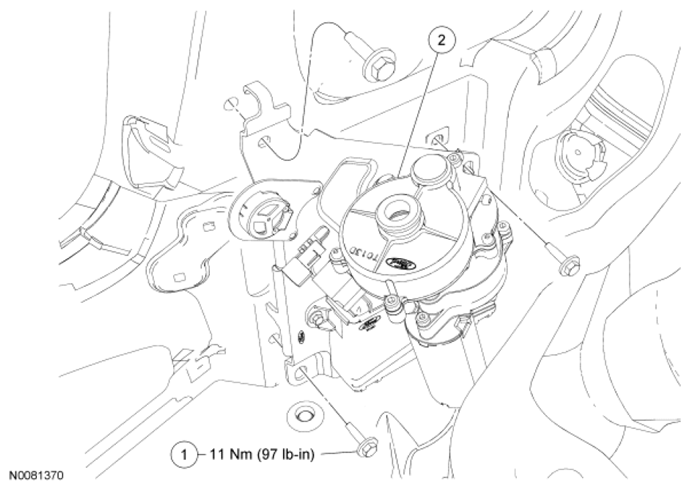

Fig 1: Power Liftgate Motor Assembly With Retaining Bolt With Torque Specifications
G06505822Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W505424 Power liftgate motor retaining bolt (3 required)
2 404C85 Power liftgate motor assembly
