Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Front Door

NOTE: Front LH door shown, front RH door similar.

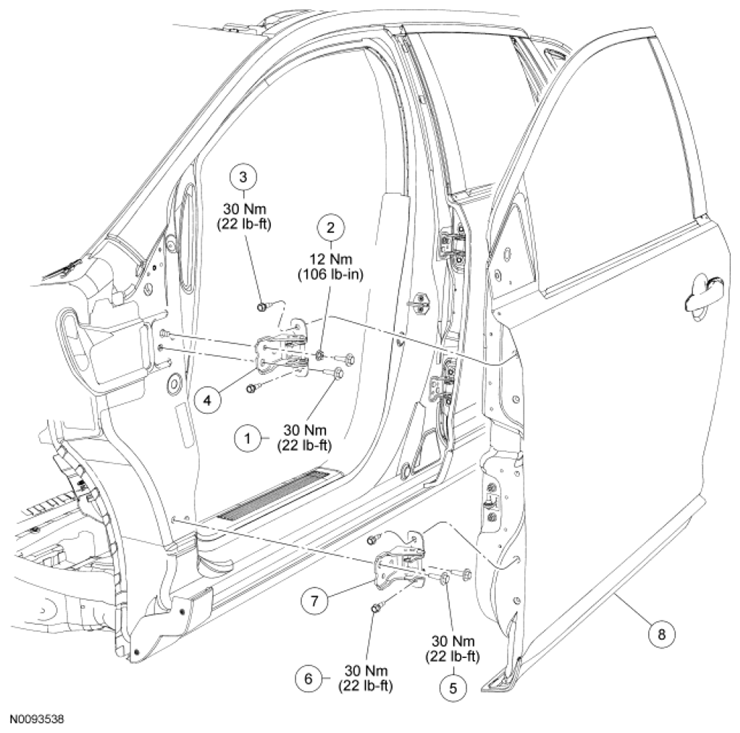

Fig 1: Front Door Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W712103-S	Front door upper hinge-to-body bolt (2 required)
2	-	Front door upper hinge-to-body nut
3	W710941-S	Front door upper hinge-to-door bolt (2 required)
4	22800-1	Front door upper hinge
5	W712103-S	Front door lower hinge-to-body bolt (2 required)
6	W710941-S	Front door lower hinge-to-door bolt (2 required)
7	22810-1	Front door lower hinge
8	20124	Front door assembly

Rear Door

NOTE: Rear LH door shown, rear RH door similar.

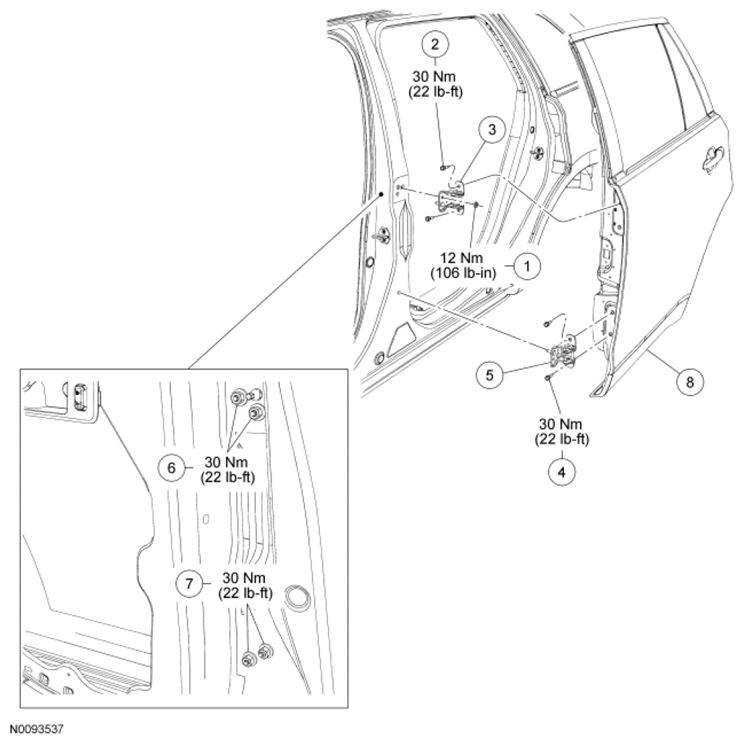

Fig 2: Rear Door Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Rear door upper hinge-to-body nut
2	W710941-S	Rear door upper hinge-to-door bolt (2 required)
3	26800	Rear door upper hinge
4	W710941-S	Rear door lower hinge-to-door bolt (2 required)
5	26810	Rear door lower hinge
6	W709361-S	Rear door upper hinge-to-body nuts (2 required)
7	W709361-S	Rear door lower hinge-to-body nuts (2 required)
8	20124	Rear door assembly

NOTE: Front LH door shown, all other doors similar.

Disconnect the battery cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the door check arm-to-body bolt.
- To install, tighten to 20 Nm (177 lb-in).

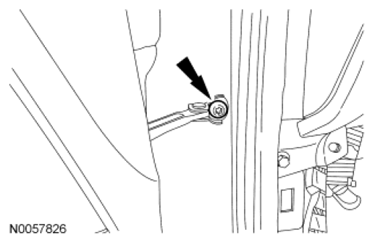

  Fig 3: Locating Door Check Arm-To-Body Bolt
  Courtesy of FORD MOTOR CO.

NOTE: The electrical connector has a lever that must be disengaged before the connector can be removed from the body.

Disconnect the door-to-body electrical connector.
- Disengage the door-to-body electrical connector lever.
- Disconnect the electrical connector from the body.

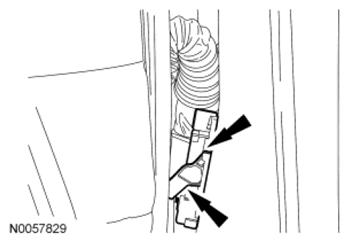

  Fig 4: Locating Door-To-Body Electrical Connector
  Courtesy of FORD MOTOR CO.
Remove the 2 upper hinge-to-door bolts.
- To install, tighten to 30 Nm (22 lb-ft).

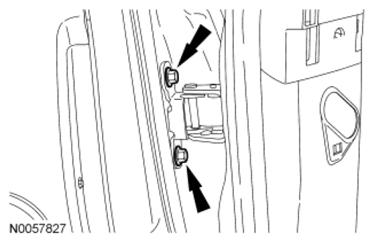

  Fig 5: Locating Upper Hinge-To-Door Bolts
  Courtesy of FORD MOTOR CO.

NOTE: The next step requires the assistance of another technician.

Remove the 2 lower hinge-to-door bolts.
- To install, tighten to 30 Nm (22 lb-ft).
- Remove the door.

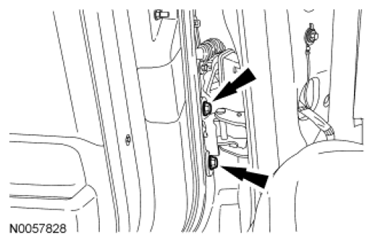

  Fig 6: Locating Lower Hinge-To-Door Bolts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Check the alignment of the door. For additional information, refer to DOOR ALIGNMENT - FRONT or DOOR ALIGNMENT - REAR .
