Door Check Arm: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

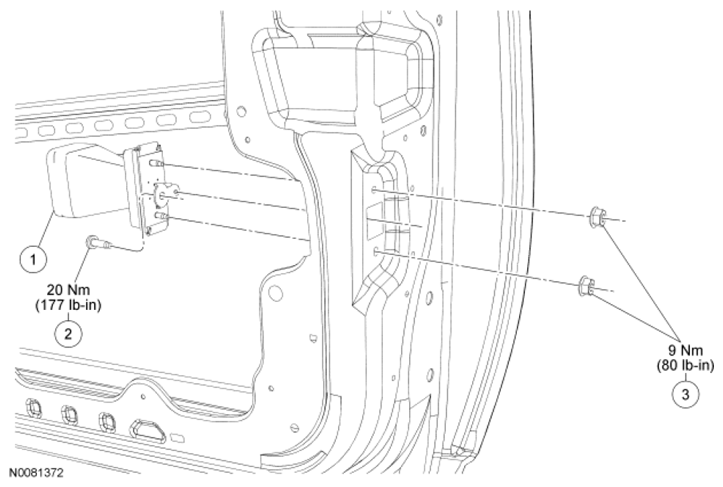

Fig 1: Door Check Arm With Nuts And Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	7823552	Door check arm
2	-	Door check arm-to-body bolt
3	W712741	Door check arm-to-door nuts
