Parking Aid Speaker: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

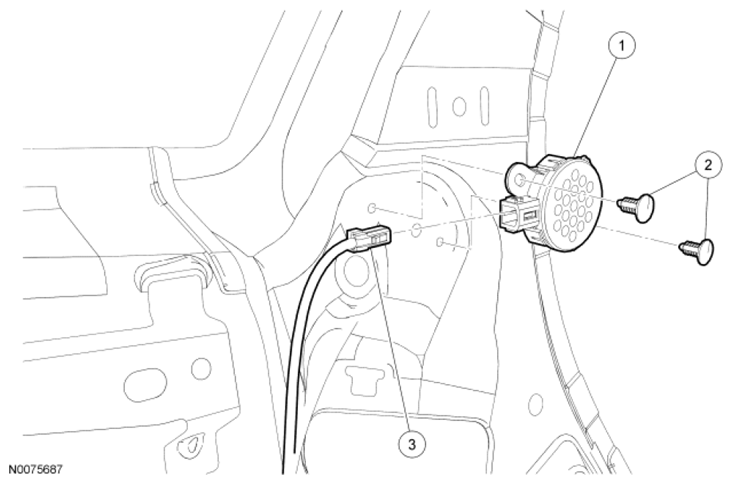

Fig 1: Identifying Parking Aid Speaker Components
G06505547Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 15K864 Parking aid speaker
2 W705635 Parking aid speaker push pins (2 required)
3 - Parking aid speaker electrical connector (part of 14A005)
