Instrument Panel Dimmer Switch: Edge
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

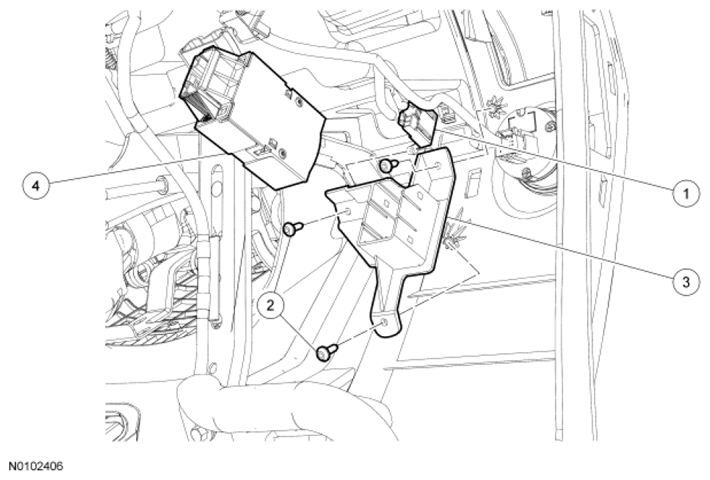

Shown in illustration from the back side of the instrument panel for clarity.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Instrument panel dimmer switch electrical connector (part of 14401) |
| 2 | W505944 | Instrument panel dimmer switch screws (3 required) |
| 3 | 11A699 | Instrument panel dimmer switch mounting bracket |
| 4 | 11691 | Instrument panel dimmer switch |
