Removal and Installation

LH rear footwell duct only

1. Remove the LH front seat. For additional information, refer to REMOVAL AND INSTALLATION .
2. Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
3. Remove the LH front door sill plate.
4. Remove the driver floor carpet pin-type retainers and position the carpet away from the LH rear footwell duct.
5. Remove the 5 LH rear footwell duct pin-type retainers.
6. Remove the 7 floor console support bracket bolts.

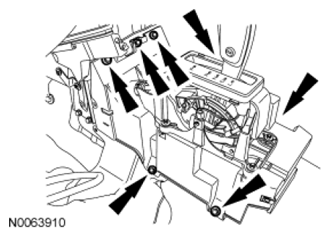

   Fig 1: Locating Floor Console Support Bracket Bolts

   Courtesy of FORD MOTOR CO.
NOTE: The floor console support bracket will have to be repositioned to remove the LH rear footwell duct.
7. Remove the LH rear footwell duct.

   RH rear footwell duct only

8. Remove the RH floor console side finish panel.
9. Remove the RH front seat. For additional information, refer to REMOVAL AND INSTALLATION .
10. Remove the RH front door sill plate.
11. Remove the passenger front floor carpet pin-type retainers and position the carpet away from the RH rear footwell duct.
12. Remove the 5 RH rear footwell duct pin-type retainers.
13. Remove the RH rear footwell duct.

    Both rear footwell ducts

14. To install, reverse the removal procedure.
