Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the climate control module. For additional information, refer to HEATING VENTILATION AIR CONDITIONING (HVAC) MODULE - EDGE .
Pull to remove the blower motor switch knob.
Remove the blower motor switch nut.

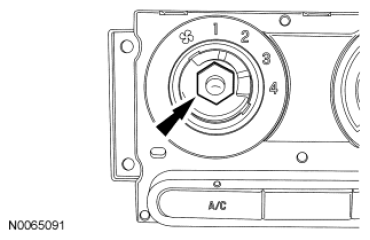

Fig 1: Locating Blower Motor Switch Nut
Courtesy of FORD MOTOR CO.
Release the 2 retaining tabs with the index finger on each hand, while depressing the blower motor switch shaft with the thumbs to remove the blower motor switch.

Fig 2: Locating Retaining Tabs
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
