Air Conditioning (A/C) Compressor: Material
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

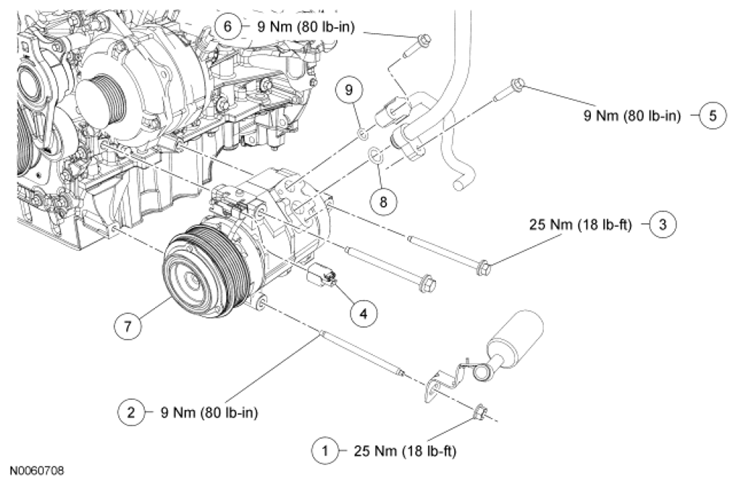

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor nut |
| 2 | W712610 | A/C compressor stud |
| 3 | W712611 | A/C compressor bolt (2 required) |
| 4 | 12B637 | Clutch field coil electrical connector |
| 5 | W500215 | A/C compressor suction fitting bolt |
| 6 | W500215 | A/C compressor discharge fitting bolt |
| 7 | 19703 | A/C compressor |
| 8 | 19E889 | Compressor suction fitting O-ring seal |
| 9 | 19E889 | Compressor discharge fitting O-ring seal |
