Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown in illustration, RH similar.

Remove the door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Reconnect the window control switch.
Lower the window until the glass clamp bolt can be accessed through the access hole, then loosen the glass clamp bolt.
- To install, tighten to 9 Nm (80 lb-in).

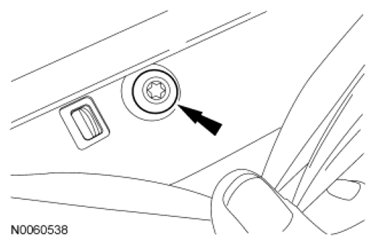

  Fig 1: Locating Glass Clamp Bolt
  Courtesy of FORD MOTOR CO.
Tape the window in position, then lower the window regulator downward until it reaches the stops at the bottom of the regulator tracks.
Remove the rear door glass interior weatherstrip.

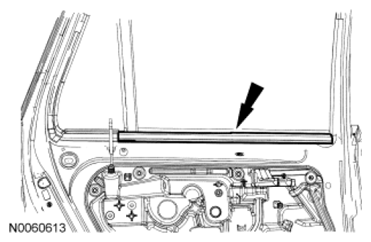

Fig 2: Locating Rear Door Glass Interior Weatherstrip
Courtesy of FORD MOTOR CO.
Remove the rear door window glass lower fixed window screw.

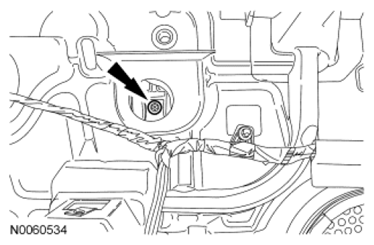

Fig 3: Locating Rear Door Window Glass Lower Fixed Window Screw
Courtesy of FORD MOTOR CO.
Remove the rear door window glass upper fixed window screw.

Fig 4: Locating Rear Door Window Glass Upper Fixed Window Screw
Courtesy of FORD MOTOR CO.
Position the top run aside as shown in illustration.

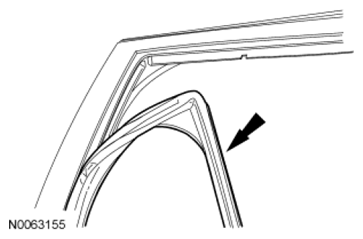

Fig 5: Locating Top Run
Courtesy of FORD MOTOR CO.

NOTE: Protect the painted surfaces of the vehicle.

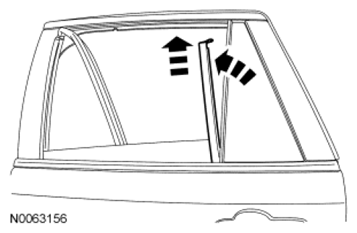

Fig 6: Pulling Top Of Bracket

Courtesy of FORD MOTOR CO.

With the aid of an assistant (holding the glass in a lowered position to allow clearance), carefully pull the top of the bracket forward slightly, then upward and completely out of the door towards the inside of the vehicle.
Slide the glass down, tilt and bring the glass back through the top of the window opening and remove the glass from the door.
To install, reverse the removal procedure.
