Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Edge only

Pull the switch bezel straight up to unclip it from the door trim panel.
MKX only

NOTE: LH front shown in illustration, all others similar.

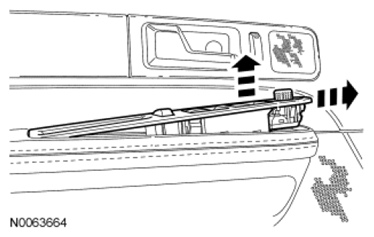

Fig 1: Pulling Up On Front Edge Of Switch Bezel

Courtesy of FORD MOTOR CO.

Pull up on the front edge of the switch bezel and pull forward to unhook it from the door trim panel.
All vehicles
Disconnect the electrical connector(s).
Unclip the window control switch from the switch bezel.
To install, reverse the removal procedure.
