Glass, Frames and Mechanisms - Exploded View, Rear Door
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

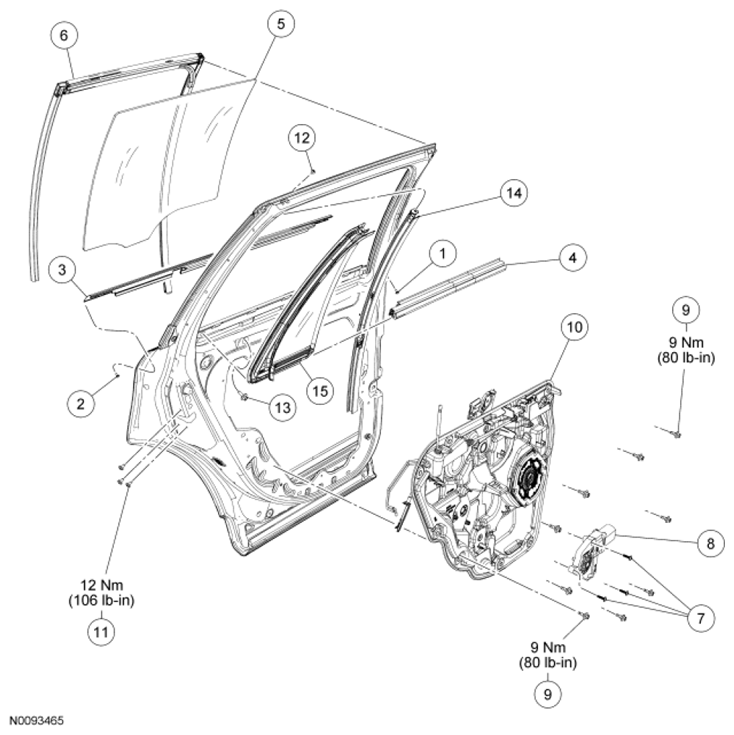

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W709451 | Rear door glass weatherstrip C-pillar screw |
| 2 | W709451 | Rear door glass weatherstrip D-pillar screw |
| 3 | 5425597 LH/5425596 RH | Rear door glass weatherstrip |
| 4 | 5425860 | Interior weatherstrip |
| 5 | 5425713 LH/5425712 RH | Rear door window glass |
| 6 | 5425767 LH/5425766 RH | Rear door glass top run |
| 7 | 166193 | Window motor screws |
| 8 | 7423394 LH/7423395 RH | Window regulator motor |
| 9 | W713426 | Door module bolts (9 required) |
| 10 | 5424995 LH/5424994 RH | Rear door module |
| 11 | W505821 | Door latch screw (3 required) |
| 12 | - | Upper fixed window screw |
| 13 | - | Lower fixed window screw |
| 14 | 7825797 LH/7825796 RH | Center guide bracket |
| 15 | 7829905 | Fixed glass assembly |
- For additional information, refer to the appropriate procedure(s).
