Inertia Fuel Shutoff (IFS) Switch: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

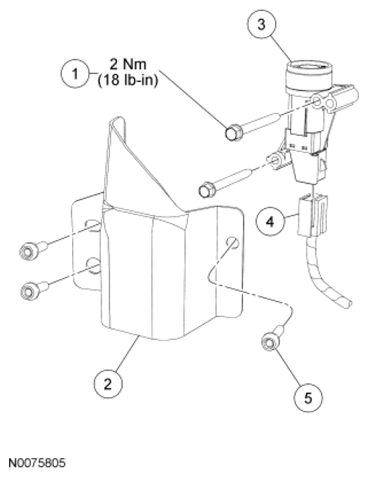

Fig 1: Inertia Fuel Shutoff Switch Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W504169	Inertia Fuel Shutoff (IFS) switch bolt (2 required)
2	-	IFS switch shield
3	9341	IFS switch
4	14489A	IFS switch electrical connector
5	-	IFS switch shield rivet (3 required)
