Fuel Tank Filler Pipe Assembly
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

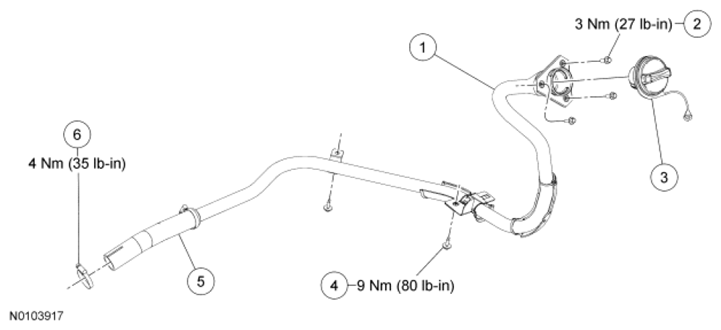

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9034 | Fuel tank filler pipe |
| 2 | W505253 | Fuel tank filler pipe flange screw (3 required) |
| 3 | 9030 | Fuel tank filler cap |
| 4 | W710330 | Fuel tank filler pipe bolt (2 required) |
| 5 | - | Fuel tank filler pipe hose (part of 9034) |
| 6 | W525937 | Fuel tank filler pipe hose clamp |
