Front Wheel Drive (FWD) Fuel Tank Assembly
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

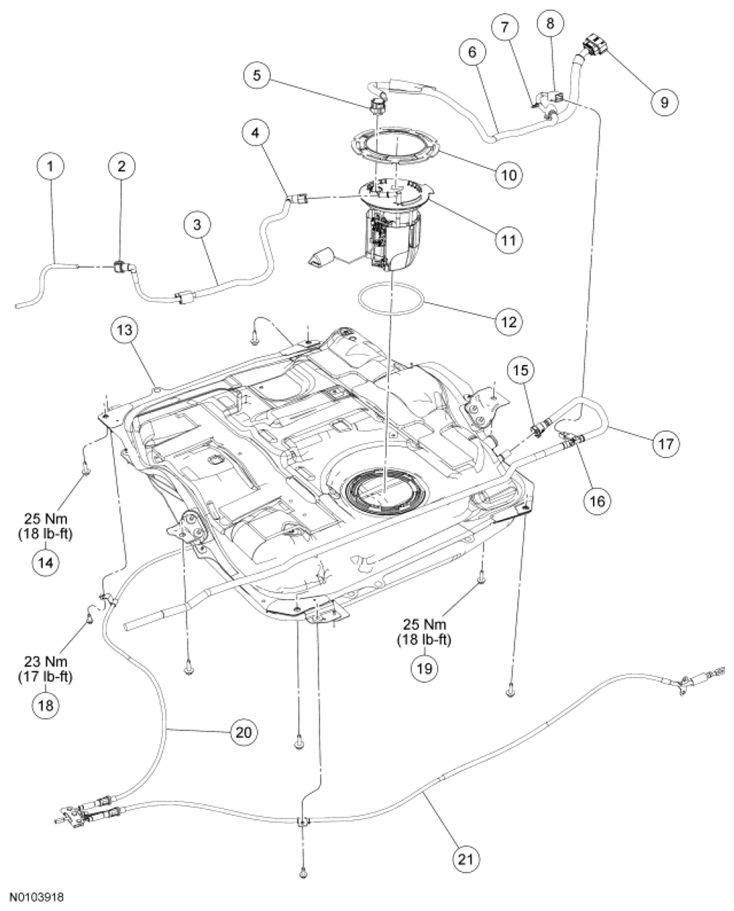

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9S284 | Fuel tube |
| 2 | - | Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 9324) |
| 3 | 9324 | Fuel tank jumper tube |
| 4 | - | Fuel tank jumper tube-to-Fuel Pump (FP) module quick connect coupling (part of 9324) |
| 5 | 14A464 | FP module electrical connector |
| 6 | 14407 | Fuel tank wiring harness |
| 7 | - | Fuel tank wiring harness pin-type retainer (part of 14407) |
| 8 | 14A464 | Fuel Tank Pressure (FTP) sensor electrical connector |
| 9 | 14A464 | Fuel tank wiring harness electrical connector |
| 10 | 9C385 | FP module lock ring |
| 11 | 9H307 | FP module |
| 12 | 9276 | FP module O-ring seal |
| 13 | 9002 | Fuel tank |
| 14 | W712826 | Fuel tank bolt (4 required) |
| 15 | - | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9C047) |
| 16 | - | FTP sensor (part of 9C047) |
| 17 | 9C047 | Fuel vapor tube assembly |
| 18 | W708004 | Parking brake cable bracket bolt (2 required) |
| 19 | W712826 | Fuel tank bracket bolt (2 required) |
| 20 | 2A604 | RR parking brake cable |
| 21 | 2A823 | LR parking brake cable |
