WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

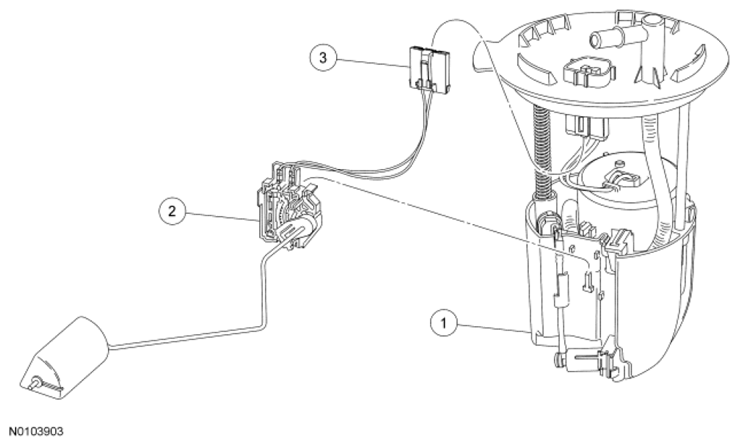

Fig 1: Identifying Fuel Level Sender Components
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART
Item
Part Number
Description
1
9H307
Fuel Pump (FP) module
2
9A299
Fuel level sender
3
-
Fuel level sender electrical connector (part of 9A299)
