Transmission Fluid Cooler: Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Position the transmission fluid cooler in place.
Install the 2 transmission fluid cooler support brackets and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

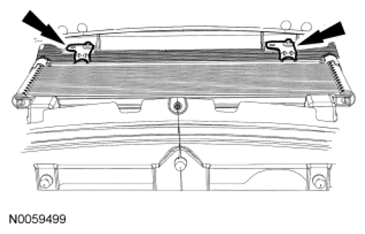

  Fig 1: Locating Transmission Fluid Cooler Support Brackets
  Courtesy of FORD MOTOR CO.
Connect the transmission fluid cooler tubes to the transmission fluid cooler.

Fig 2: Locating Transmission Fluid Cooler Tubes
Courtesy of FORD MOTOR CO.
Install the transmission fluid cooler tube secondary latches on the transmission fluid cooler.

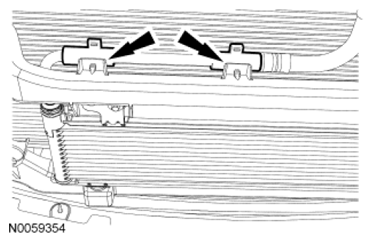

Fig 3: Locating Transmission Fluid Cooler Tube Secondary Latches
Courtesy of FORD MOTOR CO.
Connect the transmission fluid cooler tube fasteners to the radiator support.

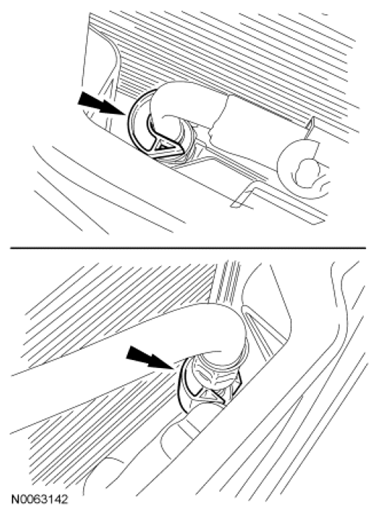

Fig 4: Locating Transmission Fluid Cooler Tube Fasteners
Courtesy of FORD MOTOR CO.
Install the front bumper cover. For additional information, refer to BUMPERS .
Check the transmission fluid level and add transmission fluid as necessary.
