Removal And Installation: Thermostat: Material
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Specialty Green Engine Coolant VC-10-A2 (US); CVC-10-A (Canada) |
WSS-M97B55-A |

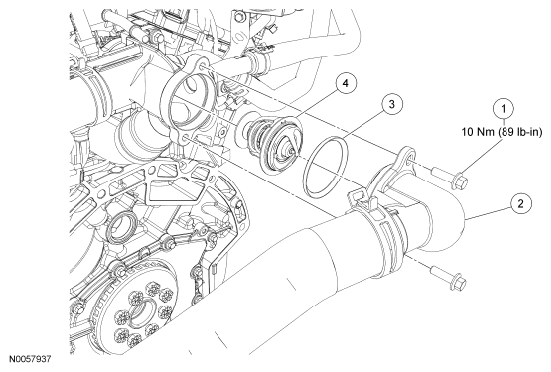

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500014 | Thermostat housing cover bolt (2 required) |
| 2 | 8594 | Thermostat housing cover |
| 3 | - | O-ring seal |
| 4 | 8575 | Thermostat |
