Removal and Installation
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the Air Cleaner (ACL) assembly. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .

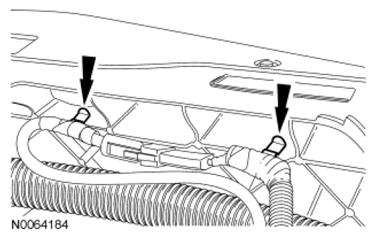

- If equipped, detach the 2 block heater wiring clips from the radiator support.
- Detach the wiring harness retainers and position the harness aside.
- Position aside the upper radiator hose from the cooling fan motor and shroud.
- Disconnect the cooling fan motor electrical connector.
- Remove the 2 bolts and the cooling fan motor and shroud.
- To install, tighten to 6 Nm (53 lb-in).
- To install, reverse the removal procedure.
