Cooling Fan Motor and Shroud: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

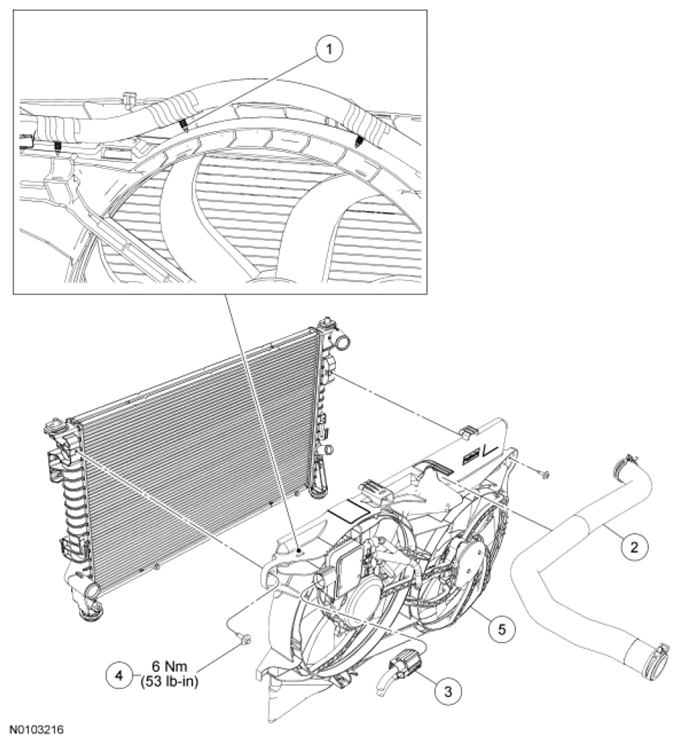

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
13A506 |
Wiring harness retainer |
| 2 |
8B274 |
Upper radiator hose |
| 3 |
14A464 |
Cooling fan motor and shroud electrical connector |
| 4 |
W503924 |
Cooling fan motor and shroud bolt (2 required) |
| 5 |
8C607 |
Cooling fan motor and shroud |
