Coolant Pump: Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

    NOTE: Clean and inspect all sealing surfaces.
  1. Install the coolant pump and the 8 bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      Fig 1: Tightening Sequence Of Coolant Pump Bolts
      G06063050Courtesy of FORD MOTOR CO.
  2. Remove all of the shop towels from the oil pan opening.
  3. NOTE: Any coolant that has accumulated in the oil pan must be drained from the pan and any residual coolant cleaned from the front of the engine and oil pan. Failure to remove all traces of the coolant can result in oil contamination and severe engine damage.
  4. Remove the oil pan drain plug and allow any accumulated coolant to drain.
    • Remove any residual coolant from the front of the engine and the oil pan using regulated compressed air and clean lint-free shop towels.
    • Install the oil pan drain plug and tighten to 27 Nm (20 lb-ft).

    Engines equipped with late build/replacement RH timing chain guides

  5. Loosen the RH primary timing chain guide upper bolt.
    • Position the RH primary timing chain guide and install the lower bolt.
    • Tighten the 2 bolts to 10 Nm (89 lb-in).

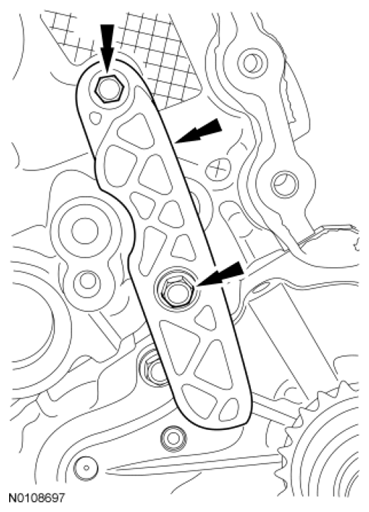

      Fig 2: Locating RH Primary Timing Chain Guide And Lower Bolts
      G06502164Courtesy of FORD MOTOR CO.

    Engines equipped with early build RH timing chain guides

  6. Loosen the RH primary timing chain guide upper bolt.
    • Position the RH primary timing chain guide and install the lower bolt.
    • Tighten the 2 bolts to 10 Nm (89 lb-in).
      Fig 3: Locating Primary Timing Chain Guide And Lower Bolt - RH
      G06063051Courtesy of FORD MOTOR CO.

    All vehicles

  7. Install the primary timing chain with the colored links aligned with the timing marks on the VCT  assemblies and the crankshaft sprocket.
    Fig 4: Aligning With Timing Marks On VCT Assemblies And Crankshaft Sprocket
    G06062055Courtesy of FORD MOTOR CO.
  8. Install the upper LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 5: Locating Upper LH Primary Timing Chain Guide And Mounting Bolts
      G06063046Courtesy of FORD MOTOR CO.
  9. Install the lower LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 6: Locating Lower LH Primary Timing Chain Guide And Bolts
      G06062032Courtesy of FORD MOTOR CO.
  10. Install the primary timing chain tensioner arm.
    Fig 7: Locating Primary Timing Chain Tensioner Arm
    G06062031Courtesy of FORD MOTOR CO.
  11. Reset the primary timing chain tensioner.
    • Rotate the lever counterclockwise.
    • Using a soft-jawed vise, compress the plunger.
    • Align the hole in the lever with the hole in the tensioner housing.
    • Install a suitable lock pin.
      Fig 8: Resetting Primary Timing Chain Tensioner
      G06062059Courtesy of FORD MOTOR CO.
  12. NOTE: It may be necessary to rotate the crankshaft slightly to remove slack from the timing chain and install the tensioner.
  13. Install the primary tensioner and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
    • Remove the lock pin.
      Fig 9: Locating Primary Tensioner Bolts And Lockpin
      G06063057Courtesy of FORD MOTOR CO.
  14. As a post check, verify correct alignment of all timing marks.
    Fig 10: Aligning Timing Marks
    G06062061Courtesy of FORD MOTOR CO.
  15. Inspect the VCT  housing seals for damage and replace as necessary.
    Fig 11: Locating VCT Housing Seals
    G06063041Courtesy of FORD MOTOR CO.
  16. NOTE: Make sure the dowels on the Variable Camshaft Timing (VCT) housing are fully engaged in the cylinder head prior to tightening the bolts. Failure to follow this process will result in severe engine damage.
  17. Install the LH VCT  housing and the 3 bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      Fig 12: VCT Housing Bolts Tightening Sequence - LH
      G06063060Courtesy of FORD MOTOR CO.
  18. NOTE: Make sure the dowels on the Variable Camshaft Timing (VCT) housing are fully engaged in the cylinder head prior to tightening the bolts. Failure to follow this process will result in severe engine damage.
  19. Install the RH VCT  housing and the 3 bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      Fig 13: VCT Housing Bolts Tightening Sequence - RH
      G06062064Courtesy of FORD MOTOR CO.
  20. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.
  21. Install a new engine oil filter.
    • Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.
  22. Install the engine front cover. For additional information, refer to ENGINE - 3.5L .
  23. Fill and bleed the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding  .
