Selector Lever Knob: Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Route the TCS electrical connector harness through the selector lever and install the shift knob and 2 new screws. Loosely install both screws before tightening.
- Tighten to 2 Nm (18 lb-in).

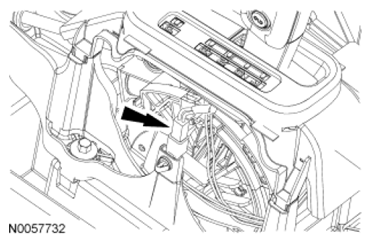

  Fig 1: Locating Shift Knob Screws
  Courtesy of FORD MOTOR CO.

NOTE: Be sure that the selector lever knob bezel is correctly installed on the selector lever knob.

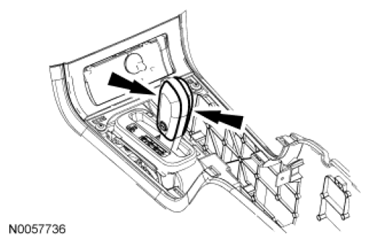

Fig 2: Locating Selector Lever Knob Trim Covers

Courtesy of FORD MOTOR CO.

Install new selector lever knob trim covers.
Edge only
Route the TCS electrical connector wires behind the selector lever bezel light bulb wires.
1. TCS electrical connector wires
2. Selector lever light bulb wires

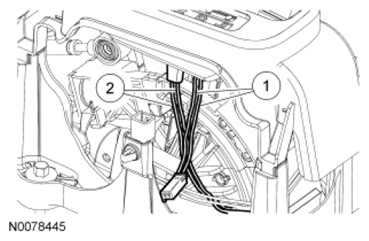

  Fig 3: Identifying TCS Electrical Connector Wires And Selector Lever Light Bulb Wires
  Courtesy of FORD MOTOR CO.
All vehicles

NOTE: Center console side trim cover removed for clarity.

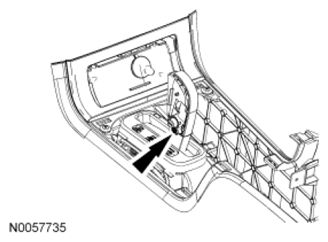

Fig 4: Locating TCS Electrical Connector

Courtesy of FORD MOTOR CO.

Connect the TCS electrical connector.
Install the center console trim cover.

Fig 5: Locating Center Console Trim Cover
Courtesy of FORD MOTOR CO.

MKX only
Install the selector lever trim ring.

Fig 6: Locating Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
