Selector Lever Cable: Removal

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

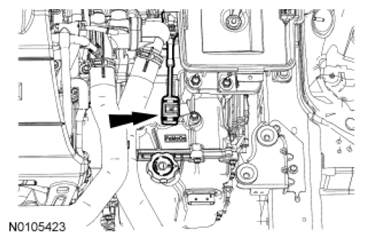

Disconnect the Mass Air Flow (MAF) sensor electrical connector and the wiring harness fastener from the Air Cleaner (ACL) assembly.

Fig 1: Locating Mass Air Flow (MAF) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the brake booster vacuum hose from the ACL outlet pipe.

Fig 2: Locating Brake Booster Vacuum Hose
Courtesy of FORD MOTOR CO.
Disconnect the engine breather from the ACL assembly.

Fig 3: Locating Engine Breather From Air Cleaner (ACL) Assembly
Courtesy of FORD MOTOR CO.
Remove the ACL assembly bracket bolt.

Fig 4: Locating ACL Assembly Bracket Bolt
Courtesy of FORD MOTOR CO.
Loosen the ACL outlet pipe clamp at the Throttle Body (TB) and remove the ACL and ACL outlet pipe assembly.

Fig 5: Locating Air Cleaner Outlet Pipe And Pipe Clamp
Courtesy of FORD MOTOR CO.
Disconnect the selector lever cable end from the manual control lever.

Fig 6: Locating Selector Lever Cable
Courtesy of FORD MOTOR CO.
Release the 2 tabs, remove the selector lever cable from the selector lever cable bracket and position the cable aside.

Fig 7: Locating Selector Lever Cable Tabs
Courtesy of FORD MOTOR CO.
Remove the 3 bolts and the selector lever cable bracket.

Fig 8: Locating Selector Lever Cable Bracket Bolts
Courtesy of FORD MOTOR CO.

MKX only
Using a suitable tool, remove the selector lever trim ring.

Fig 9: Locating Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.

All vehicles
Lift the armrest. Using a suitable tool, remove the center console trim cover.

Fig 10: Locating Center Console Trim Cover
Courtesy of FORD MOTOR CO.
Remove the 2 fasteners and position the power outlet trim cover aside.

Fig 11: Locating Power Outlet Trim Cover Fasteners
Courtesy of FORD MOTOR CO.
Remove the selector lever cable end from the selector lever.

Fig 12: Locating Selector Lever Cable
Courtesy of FORD MOTOR CO.
Release the 2 tabs and remove the selector lever cable from the selector lever housing.

Fig 13: Locating Selector Lever Housing
Courtesy of FORD MOTOR CO.
Remove the center console side cover.

Fig 14: Locating Center Console Side Cover
Courtesy of FORD MOTOR CO.

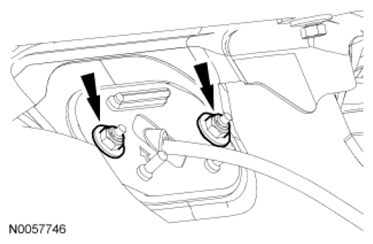

Remove the 2 nuts from the grommet, route the selector lever cable from the engine compartment through the floor and remove the selector lever cable from the passenger compartment.

Fig 15: Locating Selector Lever Cable Grommet Nuts
Courtesy of FORD MOTOR CO.
