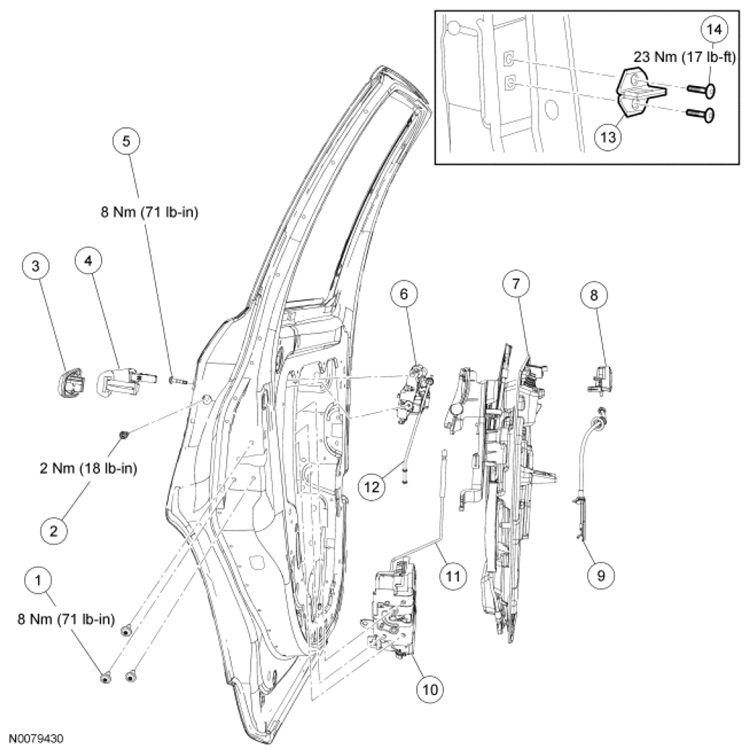

Rear Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W705830 | Rear door latch bolts (3 required) |
| 2 | W506965 | Exterior rear door handle reinforcement screw |
| 3 | 78218B08 | Exterior rear door handle bezel |
| 4 | 7822404 | Exterior rear door handle strap |
| 5 | W708514 | Exterior rear door handle reinforcement bolt |
| 6 | 7826684/7826685 | Exterior rear door handle reinforcement (RH/LH) |
| 7 | 78235A88/78235A89 | Rear door panel component module assembly (RH/LH) |
| 8 | 7822600/7822601 | Interior rear door handle (RH/LH) |
| 9 | 78266A46 | Interior rear door handle actuating cable |
| 10 | 7826412/7826413 | Rear door latch (RH/LH) |
| 11 | 7826460/7826461 | Rear door lock actuating rod (RH/LH) |
| 12 | 7826596/7826597 | Exterior rear door handle actuating rod (RH/LH) |
| 13 | 7822008 | Striker |
| 14 | W710993 | Door latch striker screws (2 required) |
- For additional information, refer to the procedures in this article.
