Liftgate Release Switch - Manual: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

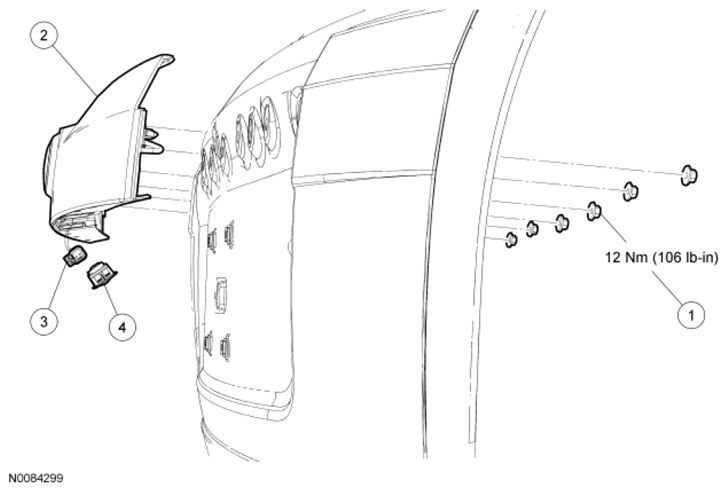

Fig 1: Liftgate Release Switch -- Manual With Torque Specifications
G06506065Courtesy of FORD MOTOR CO.
DESCRIPTION CHART

Item Part Number Description
1 W705760 Liftgate release switch molding nuts (6 required)
2 13508 Liftgate release switch molding
3 - Liftgate release switch electrical connector (part of 14A583)
4 14018 Liftgate release switch
