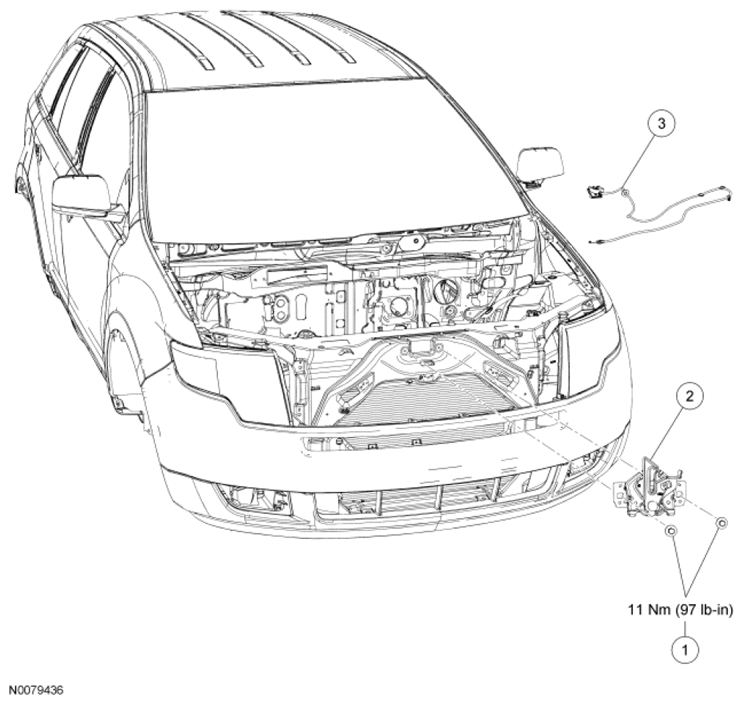

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
N808727 |
Hood latch bolts (2 required) |
| 2 |
16700 |
Hood latch |
| 3 |
16916 |
Hood latch release handle and cable |
- For additional information, refer to the procedures in this article.
