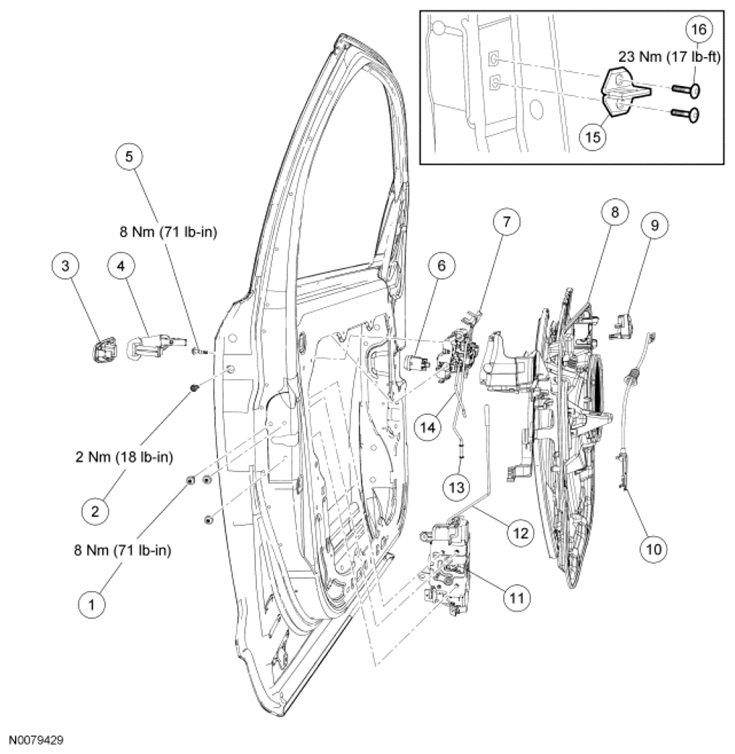

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W705830 | Front door latch bolts (3 required) |
| 2 | W506965 | Exterior front door handle reinforcement screw |
| 3 | 78218B08/78218A14 | Exterior front door handle bezel (RH/LH) |
| 4 | 7822404 | Exterior front door handle strap |
| 5 | W708514 | Exterior front door handle reinforcement bolt |
| 6 | 5421991 | Front door lock cylinder |
| 7 | 7826684/7826685 | Exterior front door handle reinforcement (RH/LH) |
| 8 | 78235A86/78235A87 | Front door panel component module assembly (RH/LH) |
| 9 | 7822600/7822601 | Interior front door handle (RH/LH) |
| 10 | 78221A00 | Interior front door handle actuating cable |
| 11 | 7821812/7821813 | Front door latch (RH/LH) |
| 12 | 7821852/7821853 | Front door lock actuating rod (RH/LH) |
| 13 | 7822152/7822153 | Exterior front door handle actuating rod (RH/LH) |
| 14 | 7822135 | Front door lock cylinder actuating rod (if equipped) |
| 15 | 7822008 | Striker |
| 16 | W710993 | Door latch striker screws (2 required) |
- For additional information, refer to the procedures in this article.
