Door Lock Control Switch: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

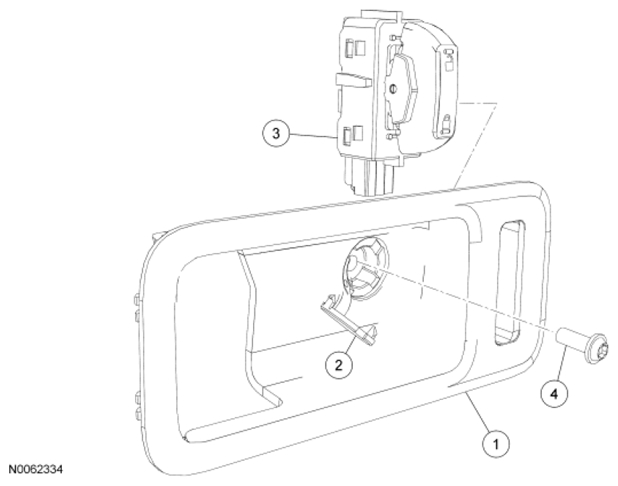

Fig 1: Identifying Door Lock Control Switch
G06506068Courtesy of FORD MOTOR CO.
DESCRIPTION CHART

Item Part Number Description
1 - Interior front door handle finish panel
2 - Interior front door handle finish panel screw cover
3 - Door lock control switch
4 - Interior front door handle finish panel screw
