Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the door window regulator and motor assembly. For additional information, refer to GLASS, FRAMES AND MECHANISMS .
Disconnect the interior door handle actuating cable.
If equipped, disconnect the door lock cylinder actuating rod.
Disconnect the door handle reinforcement actuating rod.

NOTE: Front door shown, rear door similar.

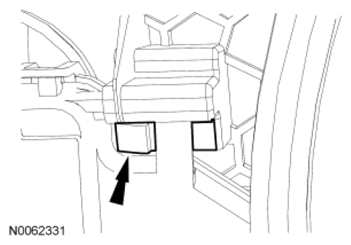

Fig 1: Locating Door Latch Rear Locking Clip

Courtesy of FORD MOTOR CO.

Release the door latch rear locking clip.

NOTE: Front door shown, rear door similar.

Release the door latch front locking clip.

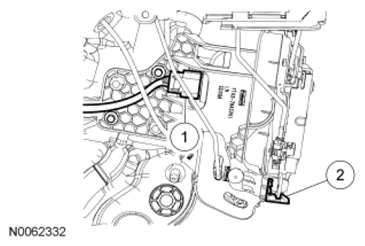

1. Disconnect the door latch electrical connector.
2. Release the door latch front locking clip.

  Fig 2: Identifying Door Latch Electrical Connector And Locking Clip
  Courtesy of FORD MOTOR CO.
Remove the door latch with the door lock actuating rod.
If necessary, disconnect the door lock actuating rod.
To install, reverse the removal procedure.
