Door Latch: Rear

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

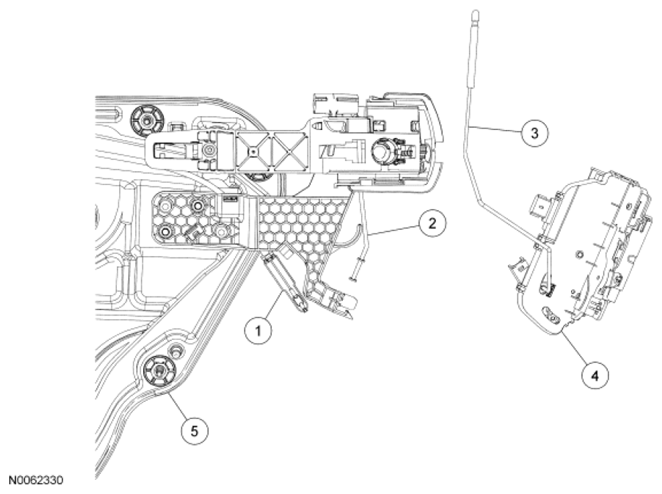

Fig 1: Identifying Rear Door Latch Components
G06506059Courtesy of FORD MOTOR CO.
DESCRIPTION CHART

Item Part Number Description
1 78266A46 Interior rear door handle actuating cable
2 7826596/7826597 Exterior rear door handle actuating rod (RH/LH)
3 7826460/7826461 Rear door lock actuating rod (RH/LH)
4 7826412/7826413 Rear door latch (RH/LH)
5 - Rear window regulator and motor assembly
