Antenna - Satellite Radio: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

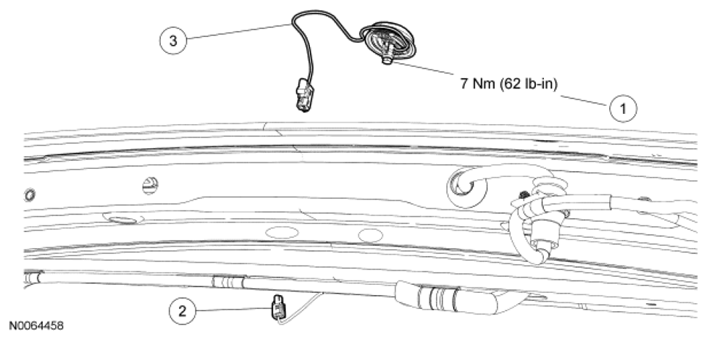

Fig 1: Satellite Radio Antenna With Cable Bolt And Cable Electrical Connector With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Satellite radio antenna cable bolt (part of 18812) |
| 2 | - | Satellite radio antenna cable electrical connector (part of 19A397) |
| 3 | 10E893 | Satellite radio antenna |
